OpenPark Gateways are industrial appliances that are installed on-site to establish local communication with the diverse sensor and actuators, run OpenPark engine software, provide local web dashboard and synchronize all data with the OpenPark Cloud.

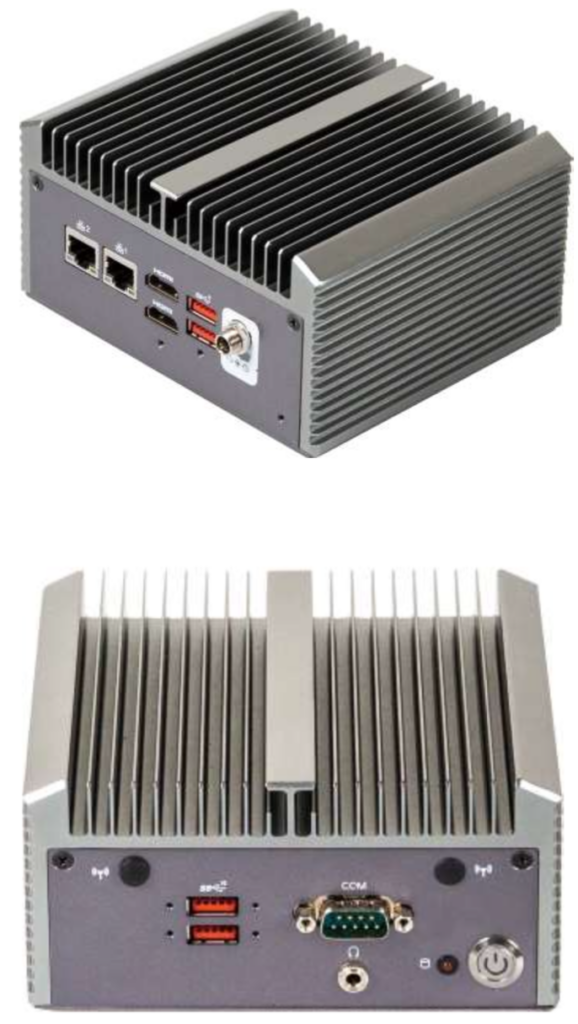

OpenPark Gate controller to integrate License plate recognition camera with OpenPark Gate barrier to open for registered cars and control a LED traffic sign with Green Arrow or Red Cross. It also provides remote control through software interface from web back-office or from Mobile app.

  • Intel CPU, 8 threads, up to 4.6 GHz
  • Memory: 8GB DDR4
  • Ethernet: 2 x GbE LAN Port
  • Intel® UHD Graphics 620:
  • 2 x HDMI 1.4 ports, supporting a maximum resolution of 4096×2160 @30Hz
  • Storage: 256 GB SSD
  • 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
  • 1 x 2230 M.2 E-Key (WiFi/BT)
  • Power: +9V~36VDC (Adapter 19V/90W)
  • Temperature:-40°C to 85°C
  • Humidity: 0%-95% (non-condensing)
  • Vibration: IEC 60068-2-6, 2 G
  • Shock: IEC 60068-2-27, 50 G

Order information

  • [OP-EGC-02]:   OpenPark Industrial Gate Controller with Intel CPU, 128GB SSD, with GPU for License Plate Recognition algorithm to host the OP-CTL / OP-LPR / OP-ACM
  • [OP-CTL]: OpenPark controller Base License
  • [OP-ACM]: OpenPark Access Control Manager license per parking gate
  • [OP-LPR]: OpenPark LPR license per camera
  • [OP-POS]: OpenPark Point of Sales license per POS machine

Traffic counters

OpenPark gate entry and exit terminal are performing the function of counting the traffic through the server registration of entry/exit events and the number of available spaces is then calculated.

On other locations in the parking lot, OpenPark IOT data collector / controller can be connected to loop detectors in pairs to perform directional counting and report to the server. The pair of loops will allow for direction awareness and the controller will send the pulses to OpenPark Gate Controller to synchronize with OpenPark Parking Management server.

Order information

  • OP-EGC-03:                OpenPark Counting Controller

Datasheets

Download datasheets from our downloads page
